Accumulation Tables

Eastey’s variable speed accumulation tables are an ideal solution for product accumulation or surge back-up. Models are available in 36” or 48” diameters.

Eastey’s accumulation tables are used to temporarily stop, hold, and release bottles, cans, jars, or other containers after they are filled or cleaned. Eastey’s accumulation tables are an efficient method to balance production line rates, allowing production to continue while downstream product is halted. They also facilitate product removal for packing and prevent product damage that can occur when a production line is stopped.

TT36 and TT48 accumulation tables offer the quality that you have come to rely on from Eastey. A stainless steel turntable, variable speed motor, dual direction drive, and simple design make Eastey’s accumulation tables a workhorse that will stand up to your toughest challenges. Each table is framed with tubular steel to withstand even the most rugged applications. A powder coated exterior protects the machine base from abusive conditions and guarantees years of use. For food applications, an optional stainless base is available.

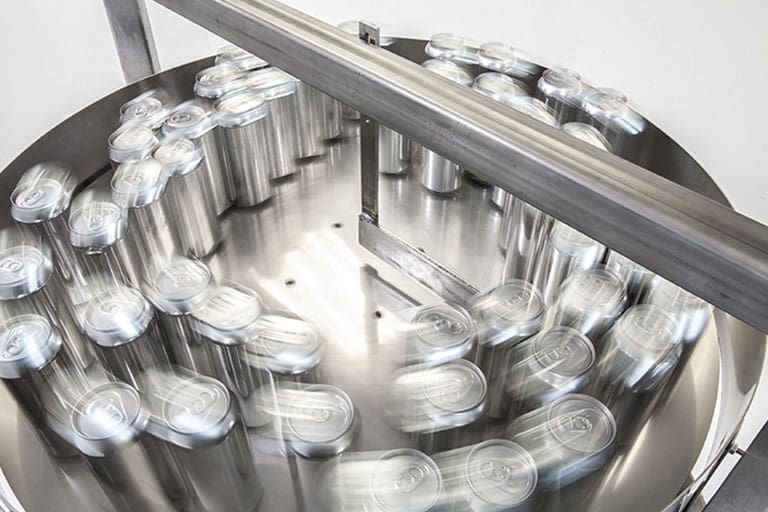

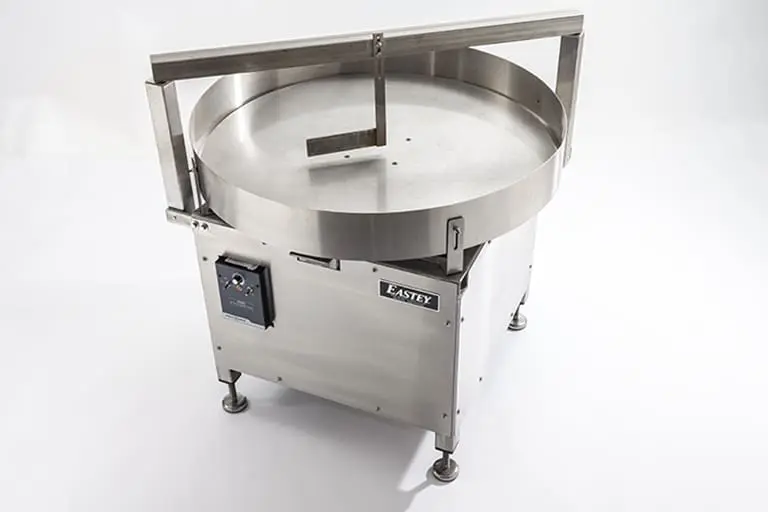

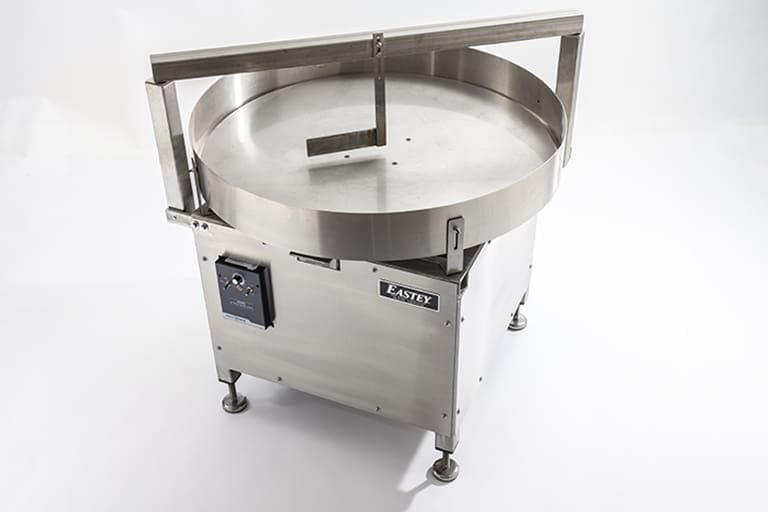

Eastey Accumulation Table Product Handling Overhead Frame and Divider Paddle

Overhead frame and divider paddle guides product to the outer edge as needed.

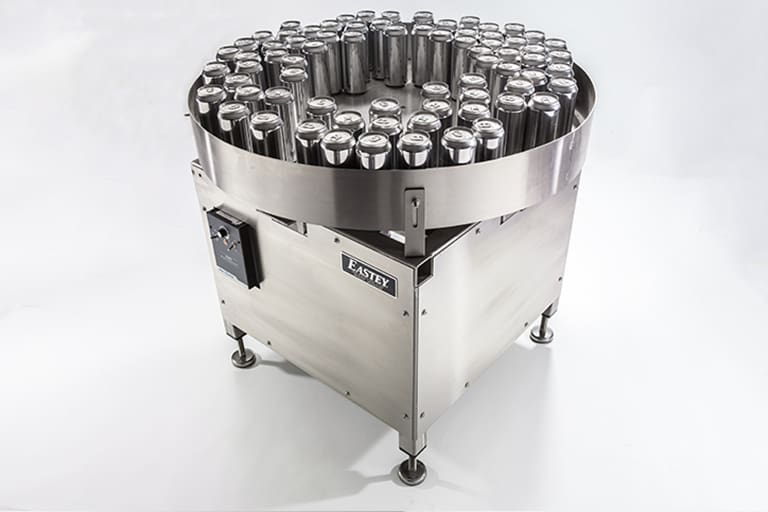

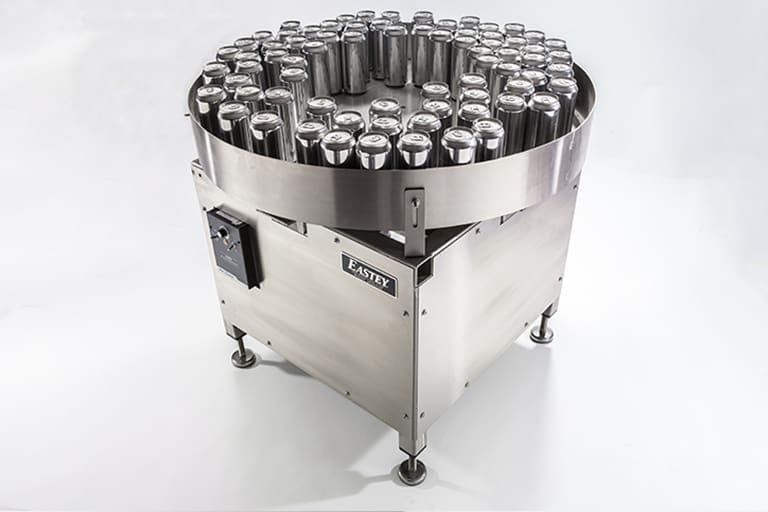

Eastey Accumulation Table Product Handling Stainless Steel Turntable

Stainless steel turntables are available in 36” or 48” diameters.

Eastey Accumulation Table Product Handling Dual Direction Drive

Dual direction drive allows turntable to run clockwise or counter-clockwise.

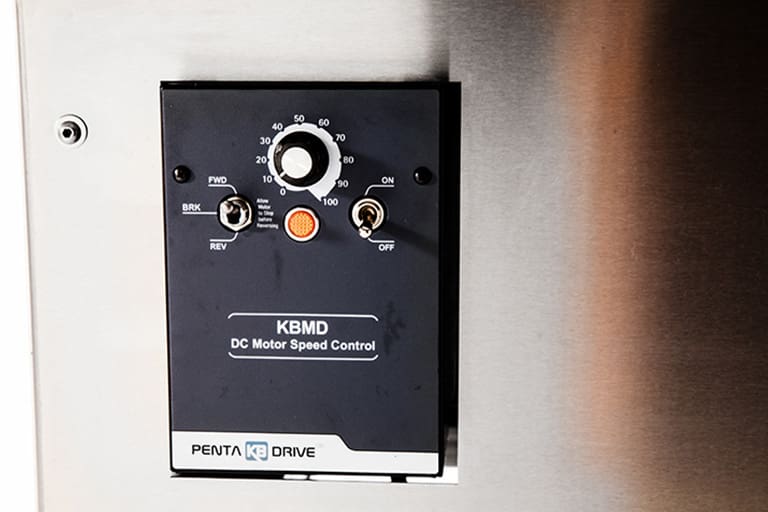

Eastey Accumulation Table Product Handling Control Panel

Simple control panel with variable speed drive allows integration with nearly every packing line.

  • Features
  • Large 36” or 48” diameter turntable tub with adjustable 5” deep sidewall
    Adjustable side guides
    Easy to clean stainless steel tub
    Variable speed drive
    Dual direction drive for clockwise / counter-clockwise operation
    Smooth, consistent turntable speed
    Adjustable leveling feet or optional casters
    Adjustable height (27” to 37”)
    Single plug 115V power supply
    Heavy duty rugged design
  • Table Specs
  • Model TT36 – 36.0” table diameter, 24.0” base length, 24.0″ base width, 260 lbs. weight
    Model TT48 – 48.0” table diameter, 24.0” base length, 24.0″ base width, 340 lbs. weight
    Machinery Makeup – Industrial strength tubular steel frame with powder coated steel base; or optional stainless steel base for food applications
    Working Height – Adjustable 27” to 37” height
    Variable Speed – Up to 13 revolutions per minute
    Electrical Requirements – 115V or 220V, 5A single phase with ground
    Approximate Weight Capacity – 200 lb. maximum weight @ 80% Speed
  • Optional Accessories
  • Transfer Plate – Butts up to the conveyor to provide a smooth transfer onto the Accumulation Table
    Dead Plate – Small plate that accumulates products in a row for the user to quickly grab for packing
    Packout Table – Larger table that accumulates products for the user to grab for packing; holds more products than the Dead Plate
    Product Diverter – Pushes product to the outer edge of the Accumulation Table
    Product Wedge – Pushes product to the middle of the Accumulation Table
    Casters – Lockable casters for easy movement throughout the plant
    Stainless Base – All stainless-steel base for food applications
